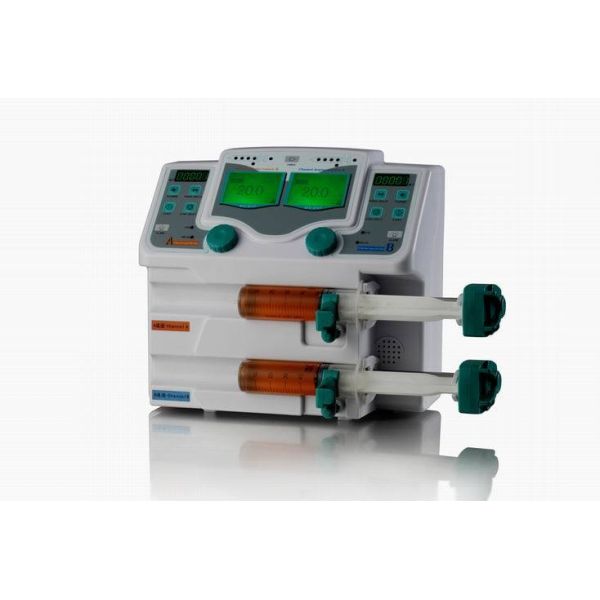

Infusion Syringe Volumetric Pump Medical Injection Automatic Customized

Brand Name : JYK

Model Number : 810TU

Certification : ISO13485

Place of Origin : China

MOQ : 1pc

Price : 500USD-600USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 2-4weeks

Packaging Details : carton

function : automatic syringe

channel no. : double channels

alarm : voice alarm

Contact Now

Double- Channel infusion Syringe Pump medical injection syringe pump medical equipment automatic portable infusion syringe pump with double channels medical infusion syringe pump with two channels

Medical equipment, double channel syringe pump 810TU
medical pump, hospital pump, surgical pump

1. Three working modes: Rate mode, time-volume mode, dosage-weight mode.
2. Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
3. Have store many brands syringes, Automatically calibration and compatible with any brand syringes.
4. Large LCD screen displays working status.
5. KVO and Bolus functions

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	50/60ml Syringe: 0.1ml/h-999.9ml/h (0.1ml/h step) 1,000ml/h-1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h-900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h-600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h-300.0ml/h (0.1ml/h step)
Flow Rate Accuracy:	Within ±3% (after correct calibration)
Mechanical precision:	Within ±2%
Bolus Rate:	50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
Purge Rate:	50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Volume Limit:	0.1ml-999.9ml
Total Injection Volume:	0.1ml-9999.9ml (0.1ml step)
Occlusion:	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms:	Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source:	AC 100V-240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate:	1ml/h
Fuse:	F1AL/250/60V, 2pcs inside
Power Consumption:	30VA
IP Classification:	IPX1
Equipment Classification:	Class I, internal power supply, Type CF
Operating Condition:	Ambient temperature: +5-+40
Relative humidity:	20-90%
Transport & Storage Condition:	Ambient temperature: -30-+55
Relative humidity:	≤95%
Dimension:	280mm (L) × 210mm (W) × 130mm (H)
Weight:	2.2kg (net weight)
