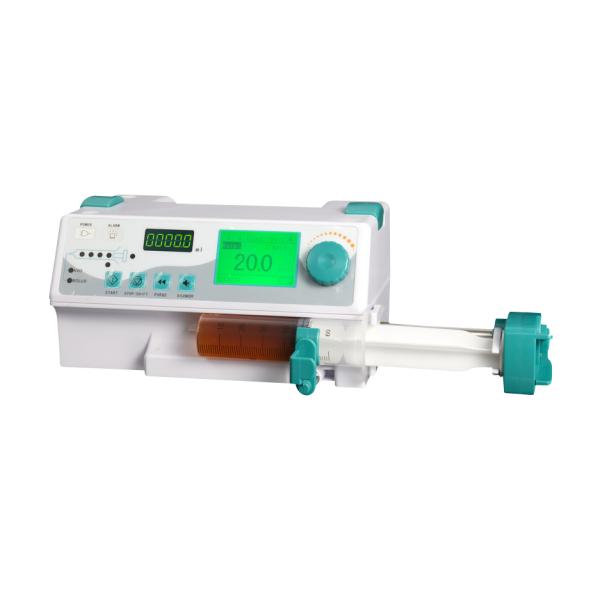

IPX4 Electric Infusion Syringe Pump With KVO Bolus Stackable

Brand Name : JYK

Model Number : 810

Certification : ISO13485

Place of Origin : China

MOQ : 1pc

Price : 200USD-250USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 2-4weeks

Packaging Details : carton

function : automatic syringe

channel no. : single channel

alarm : voice alarm

Contact Now

single Channel infusion Syringe Pump medical injection syringe pump medical equipment automatic portable infusion syringe pump with single channel medical infusion syringe pump with one channel

Medical equipment, single channel syringe pump BYZ-810

1. Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications.
2. Transfer the message between the Nurse-call System and the pumps.
3. Three working modes: Rate mode, time-volume mode, dosage-weight mode.
4. Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
5. Have store many brands syringes, Automatically calibration and compatible with any brand of syringes.
6. Large LCD screen displays working status.
7. KVO and Bolus functions.

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	50/60ml Syringe: 0.1ml/h~999.9ml/h (0.1ml/h step) 1,000ml/h~1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h~900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h~600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h~300.0ml/h (0.1ml/h step)
Flow Rate Accuracy:	Within ±3% (after correct calibration)
Mechanical precision:	Within ±2%
Bolus Rate:	50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
Purge Rate:	50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Volume Limit:	0.1ml~999.9ml
Total Injection Volume:	0.1ml~9999.9ml (0.1ml step)
Occlusion:	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms:	Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source:	AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate:	1ml/h
Fuse:	F1AL/250/60V, 2pcs inside
Power Consumption:	30VA
IP Classification:	IPX4
Equipment Classification:	Class I, internal power supply, Type CF
Operating Condition:	Ambient temperature: +5degree~+45degree;
Relative humidity:	20~90%
Transport & Storage Condition:	Ambient temperature: -30degree~+55degree
Relative humidity:	≤95%
Dimension:	280mm (L) × 210mm (W) × 130mm (H)
Weight:	2.2kg (net weight)

IPX4 Electric Infusion Syringe Pump With KVO Bolus Stackable
